Products Range : Screws and Fastener
    Description Type Size
    Screws and Fastener PDF 219 KB

    (Right Click and Save target As for Download PDF )

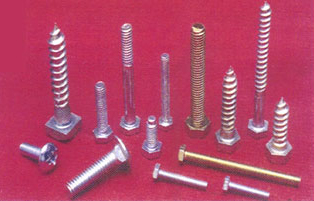

    Garg Hexagon Bolts & Carriage Bolts
    Screw No. M3 M4 M5 M6 M8 M10
    Head Size 5.5 7.0 8.0 10.0 13.0 17.5
    Head Width 2.5 2.8 3.5 4.0 5.5 7.0

    Finish Available : SC, ZP, NP, ZPYP, BLACK



    Garg Steel Machine Screw
    Screw No. M2 M3 M4 M5 M6 M8 M10
    Dia of Head (D) (Max) mm 3.8 5.6 7.5 9.2 11.0 14.5 18.0
    Depth of Head 1.2 1.65 2.2 2.5 3.0 4.0 5.0

    Finish Available : SC, ZP, NP, ZPYP, BLACK
